QT series is a continuous roller-hearth type annealing furnace with better performance than bell furnace and pusher furnace. It can be heated by either natural gas or coal gas. lts compacted design, accurate temperature control, easy operation and reliable quality performance (exceeding Chinese quality standard of JB/T1255-2001) make it one of the premium choices for spheroidized annealing with various green concepts. This type of furnaces are applied for continuous annealing (normalizing) treatment on alloys of bearing rings hardware tools, tubes, rods, coils, strips, balls and toolings, as well for pre-heat treatment on precisely forged cold-formed and cold rolled parts.
Main specifications of continuous roller-hearth gas-heated annealing furnace:
Furnace data / Capacity(tons) per day | Nominal width of furnace chamber(mm) | Full furnace length(mm) | Effective max height of treatment space(mm) | Effective max width of treatment space(mm) | For re-crystalization,set 2 layers,daily capacity(Kg) |
| QT-25 | 1750 | 49368 | 250 | 1500 | 43253 |
| QT-30 | 1750 | 53806 | 250 | 1500 | 51499 |
| QT-35 | 1750 | 59512 | 250 | 1500 | 58905 |
| QT-40 | 1750 | 65852 | 250 | 1500 | 71275 |
| QT-45 | 1750 | 70290 | 250 | 1500 | 78175 |
| QT-50 | 1750 | 74094 | 250 | 1500 | 83476 |
| QT-55 | 1750 | 80434 | 250 | 1500 | 94517 |
| QTZ-60 | 1750 | 45730 | 150 | 1500 | 60000 |
| QTZ-70 | 1750 | 50110 | 150 | 1500 | 70000 |
| QTZ-80 | 1750 | 55220 | 150 | 1500 | 80000 |
| QTZ-90 | 1750 | 61060 | 150 | 1500 | 90000 |
| QTZ-100 | 1750 | 64710 | 150 | 1500 | 100000 |
| QTZ-110 | 1750 | 69090 | 150 | 1500 | 110000 |
| QTZ-120 | 1750 | 73470 | 150 | 1500 | 120000 |
Note: The above parameters are for reference only, specific can be customized according to customer requirements

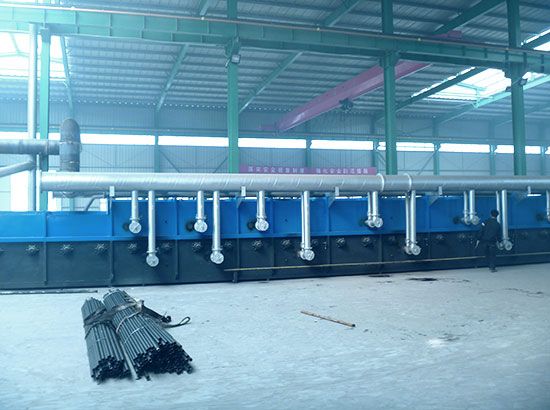

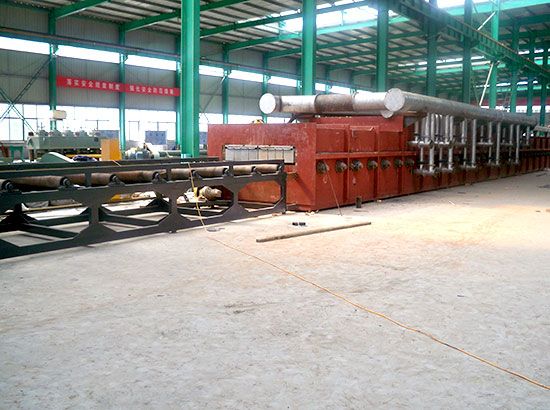

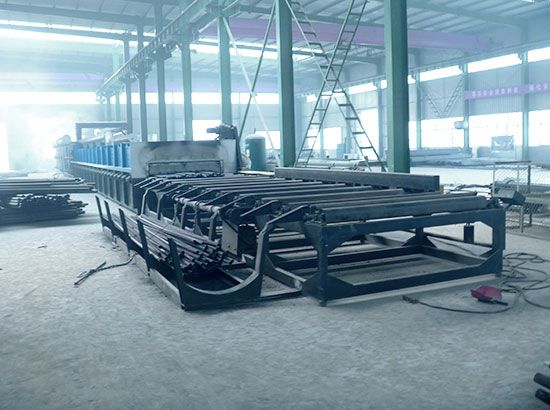

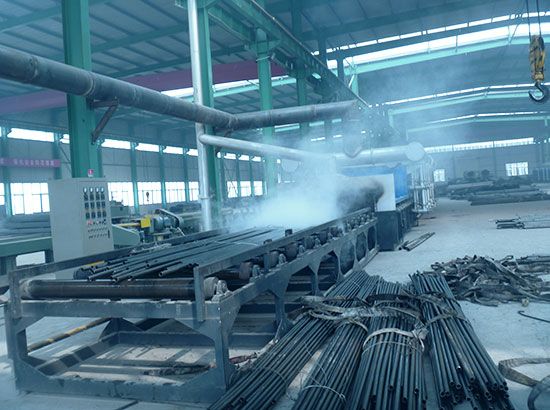

Latest projects completed
