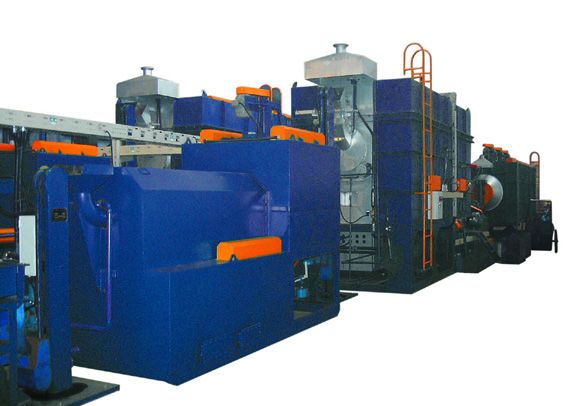

This equipment is commonly known as the drum furnace, A rotary pot fixed in the furnace is rotating continuously, The work pieces rotate, roll and move forward with the rotating pot, which prevents the accumulation of small-sized work pieces, is favorable for uniform heating and contacting with atmosphere, helps to realize continuous operation and finish full heat treatment process. This equipment is suitable for the heat treatment of small-sized parts such as the bearing ball, bearing roller, standard parts, etc
Technical Parameters of RGT Series Screw Drum Controlled Atmosphere HeatTreatment Production Line
| Name of Equipment | Model | Overall Size(m) | Diameter of Drum(mm) | Power（KW） | Productivity |
| Drier Drum-type Hot Cleaning Machine | XHG42-70 | 3.6 x2 x2.8 | φ700 | 42 | 260 |
| XHG54-70 | 4.5x2x1.7 | φ700 | 54 | 360 | |
| Drum-type Quenching Furnace | RGT120-80 | 5 x2.3x3.5 | φ800 | 120 | 160~200 |
| RGT150-80 | 5.8x2.3x3.5 | φ800 | 150 | 200~240 | |
| RGT180-80 | 6.8x2.3x3.5 | φ800 | 180 | 240~290 | |
| RGT200-80 | 7.5x2.2x3.5 | φ800 | 200 | 270~330 | |
| Quenching Tank | YCG40-75 | 4.6x2.1x2.6 | φ800+φ550 | 40 | 260 |
| YCG48-75 | 5.6x2.1x3.2 | φ800+φ550 | 48 | 360 | |
| cleaning Machine | QXG-70 | 3x2x2.2 | φ700 | 360 | |
| Tempering Furnace | RHB60-45x4 | 6x2.3x3.4 | φ450×4 | 60 | 260 |
| RHG70-45x4 | 6.9x2.3x3.4 | φ450×4 | 70 | 360 |
Note:
1、For work pieces of a diameter larger than 6mm, the drum-type quenching furnace and mesh-belt quenching tank,cleaning machine and tempering furnace can be applied.
2、The specifications of the equipments can be customized.
3、The Configuration of the production line can be changed reasonably according to the requirements of customer
